Jaw crusher bucket MB Crusher C50 S4

Name: Jaw crusher bucket MB Crusher C50 S4
Brand: MB Crusher
Price: 19367.00 EUR
Availability: InStock

€19.367,00 EUR

Sale Sold out

Taxes included.

Delivery time: On request!

Official MB Crusher dealer
Competent contact person
Individual device configuration

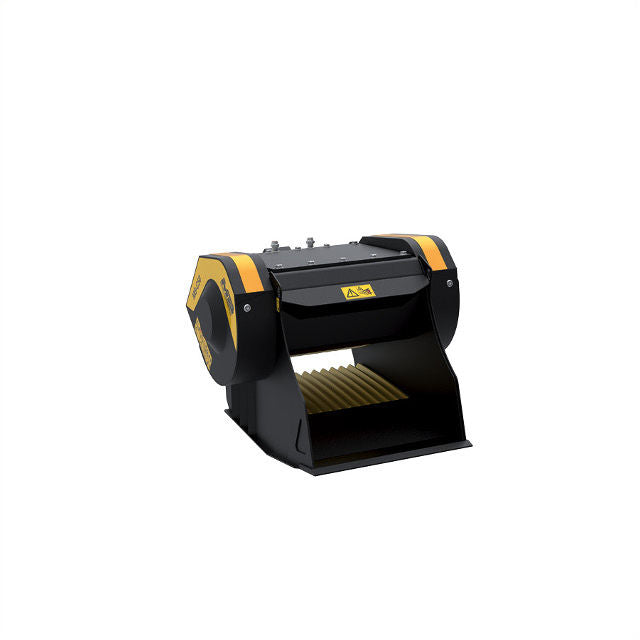

The MB-C50 S4 is the smallest crusher bucket in the MB Crusher range – yet it's a true powerhouse. Designed for excavators from 6.5 to 10 tons and backhoe loaders from 8 to 9 tons*, it's ideal for urban construction sites, hard-to-reach areas, or smaller demolition projects. Its compact size makes it particularly flexible – without compromising on performance.

Technical data at a glance:

Recommended excavator	6.5 – 10 t
Recommended backhoe loader *	8 – 9 tons
Weight	0.75 t
Loading capacity	0.15 m³
Throughput	up to 10 m3/h
Grain size	15 – 60 mm
Back pressure	200 – 250 bar
Back pressure	< 10 bar
Oil flow **	90 – 120 l/min
Opening width crusher	590 mm
Opening height crusher	280 mm
Dimension B	1240 mm
Dimension A	1000 mm
Dimension C	770 mm

* Applies to the rear arm of the backhoe loader.
**The minimum hydraulic flow value must be achieved in conjunction with the required operating pressure.
