Sorting gripper MB Crusher MB-G500 S4 | 5-8 tons
Sorting gripper MB Crusher MB-G500 S4 | 5-8 tons
Regular price
€7.191,00 EUR
Regular price
Sale price
€7.191,00 EUR
Taxes included.
Delivery time: On request!
Couldn't load pickup availability
- Official MB Crusher dealer
- Competent contact person
- Individual device configuration

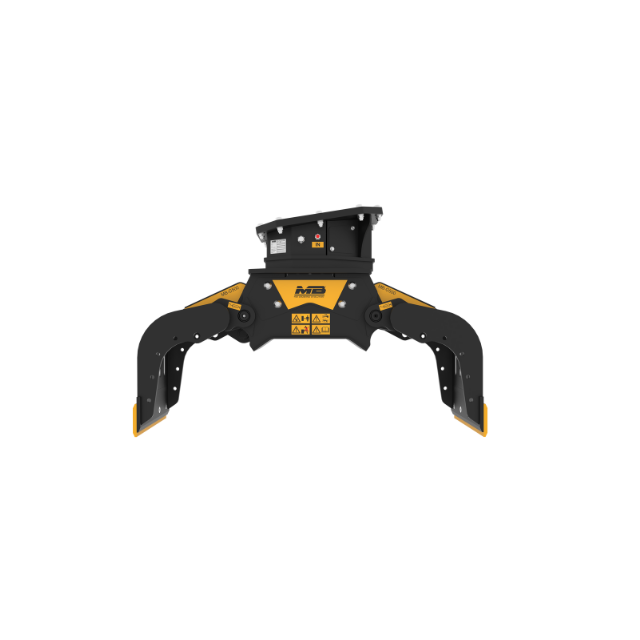

This sorting grapple is designed for performance and precision on machines from 5 to 8 tons. The MB-G500 S4 features a particularly robust construction and offers easy maintenance. Its versatility makes it ideal for sorting, loading, and light demolition work.
Technical data at a glance:
| Recommended excavator | 5 - 8 tons |
| Weight | 0.42 t |
| rotation | 360° |
| Volume (closed shell) | 0.18 m³ |
| Required working pressure (rotation) | 160 - 200 bar |
| Oil flow (rotation) | 15 - 25 l/min |
| Required working pressure (open/close) | 180 - 250 bar |
| Oil flow (open/close) | 30 - 40 l/min |
| Dimension A | 1500 mm |
| Dimension B | 980 mm |
| Dimension C | 415 mm |
| Dimension D | 1095 mm |
| Dimension E | 855 mm |
| Dimension F | 530 mm |
| Dimension G | 555 mm |
