MB Crusher

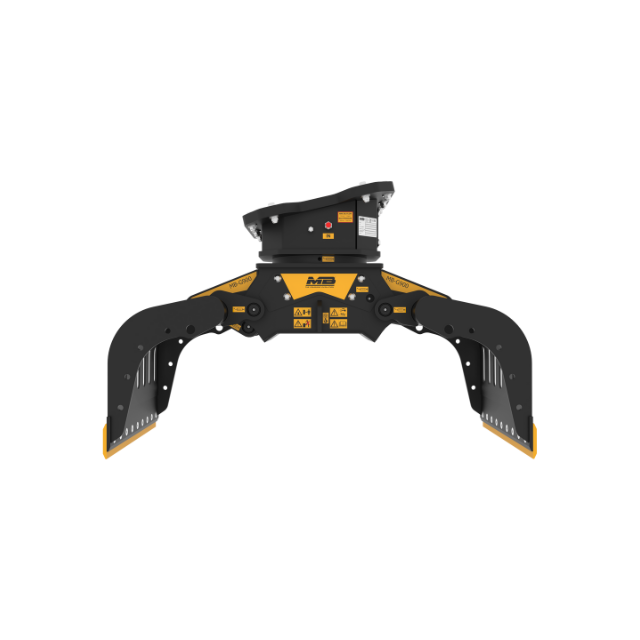

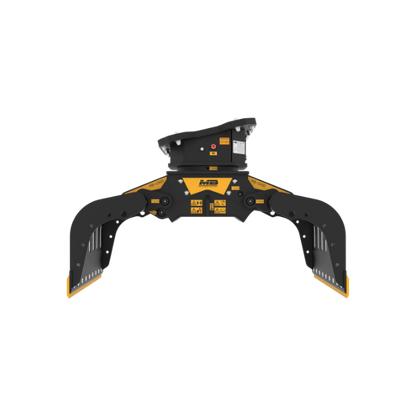

Sorting gripper MB Crusher MB-G900 S4
Sorting gripper MB Crusher MB-G900 S4
Regular price
€11.192,00 EUR
Regular price
Sale price
€11.192,00 EUR
Taxes included.
Delivery time: On request!
Couldn't load pickup availability
- Official MB Crusher dealer
- Competent contact person
- Individual device configuration

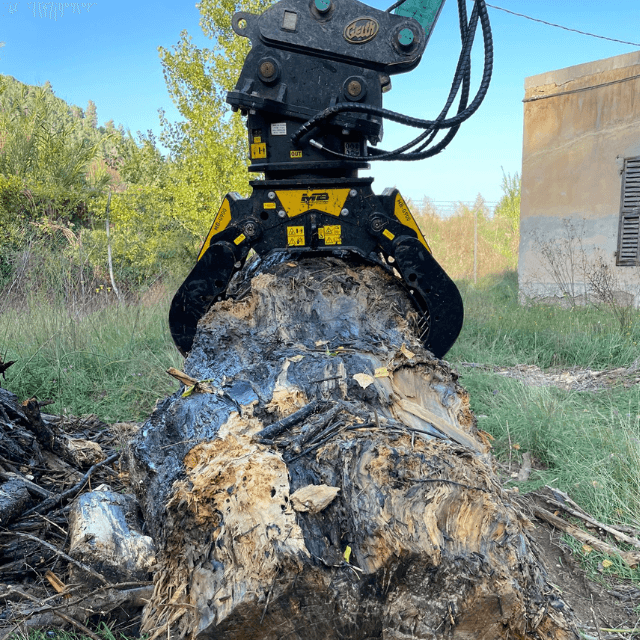

The MB-G900 S4 impresses with its powerful performance and 360° rotation for machines weighing 12 tons and above. Its reinforced construction ensures a long service life, even under intensive use in demolition or material handling.
Technical data at a glance:
| Recommended excavator | 12 - 18 tons |
| Weight | 0.78 t |
| rotation | 360° |
| Volume (closed shell) | 0.43 m³ |
| Required working pressure (rotation) | 200 - 250 bar |
| Oil flow (rotation) | 25 - 35 l/min |
| Required working pressure (open/close) | 300 - 350 bar |
| Oil flow (open/close) | 60 - 70 l/min |
| Dimension A | 1826 mm |
| Dimension B | 1210 mm |
| Dimension C | 540 mm |
| Dimension D | 1410 mm |
| Dimension E | 1000 mm |
| Dimension F | 740 mm |
| Dimension G | 950 mm |
