Cylinder protection excavator
Cylinder protection excavator
🚚 plus shipping costs
Delivery time: 6 - 7 weeks
Couldn't load pickup availability
Your machine isn't listed?
Your machine isn't listed?
No problem – we develop cylinder protection solutions tailored to your machine. Don't hesitate to contact us by phone, email, or via our contact form .
Telephone: +49 7834 86559-0
Email: info@cm-parts.com
We are available for you:
Mon - Fri: 8am - 4pm
Made in Germany
Precise manufacturing
Over 30 years of experience

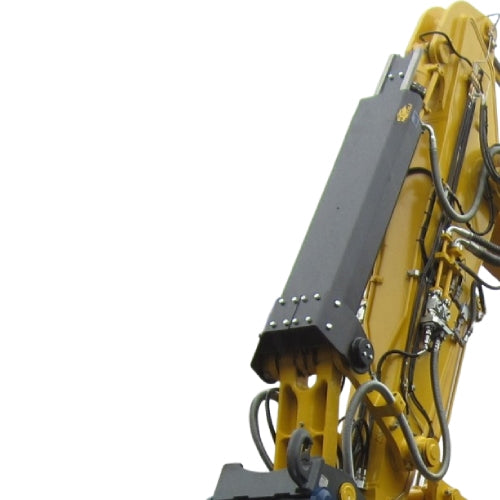

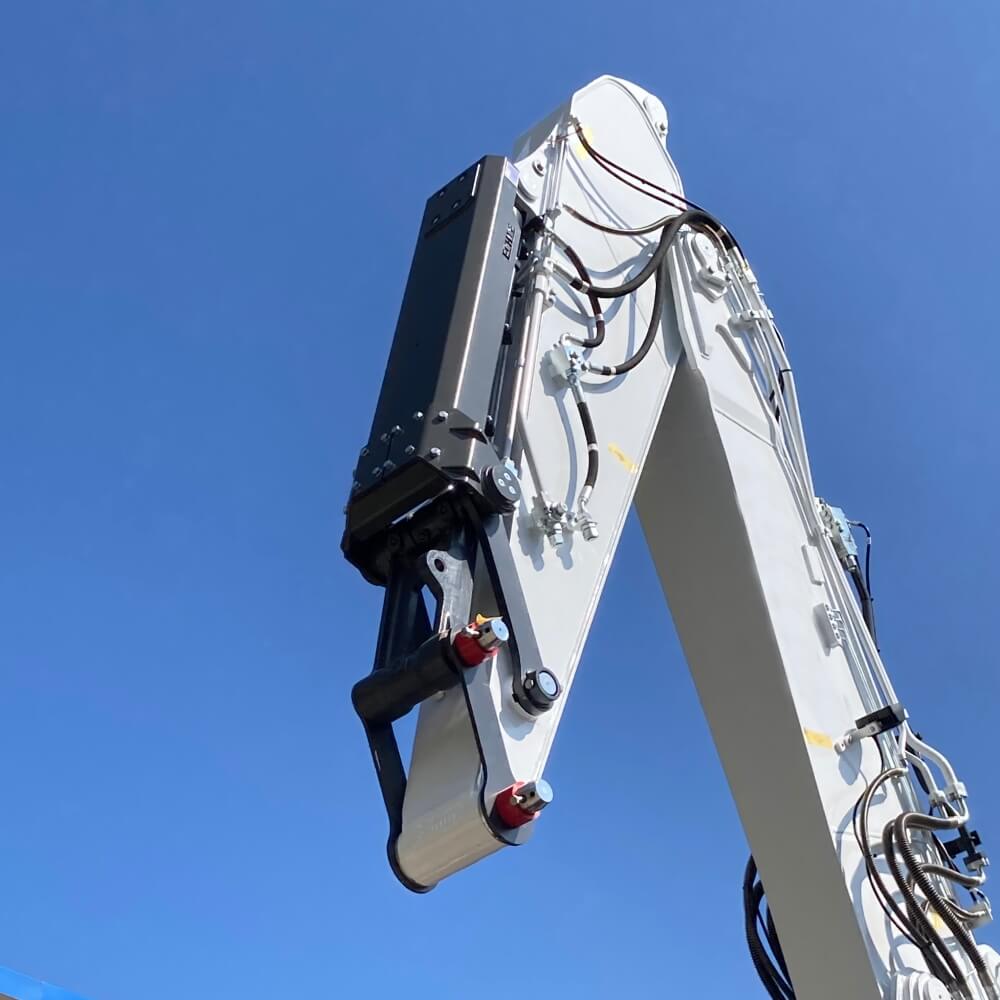

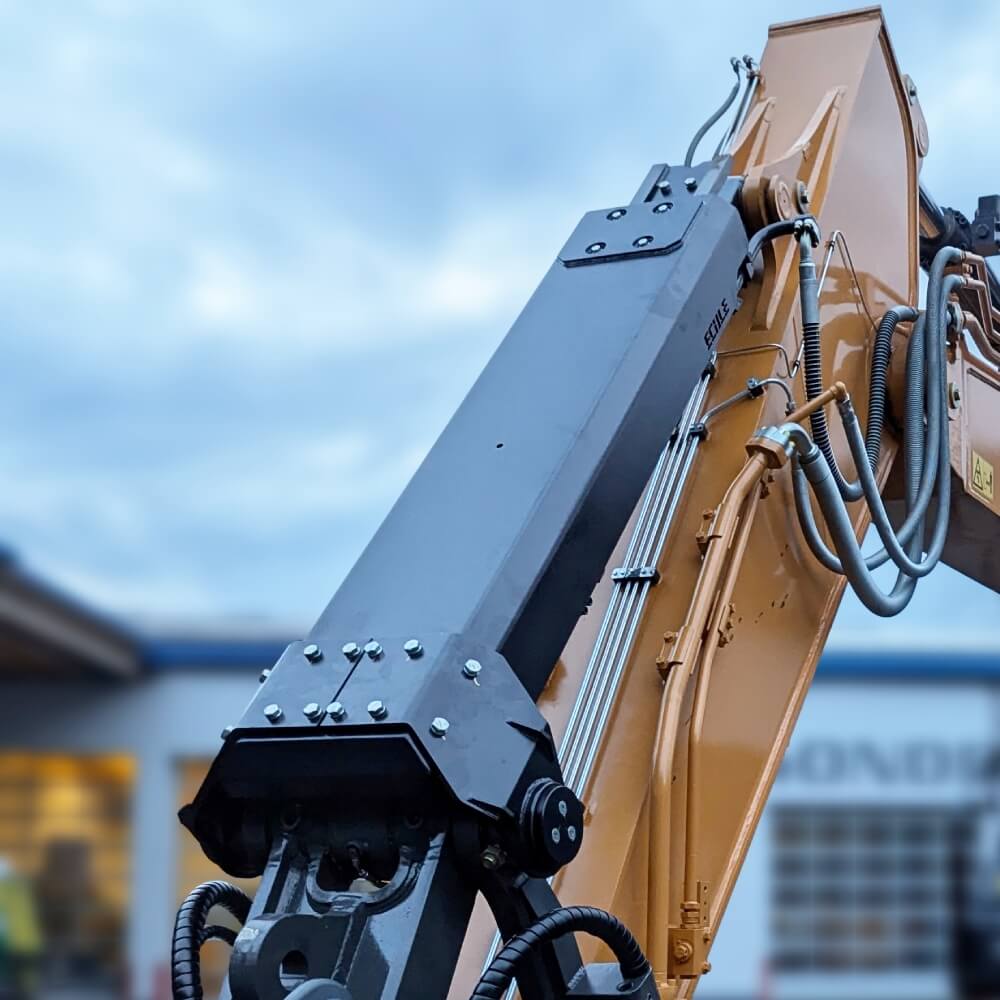

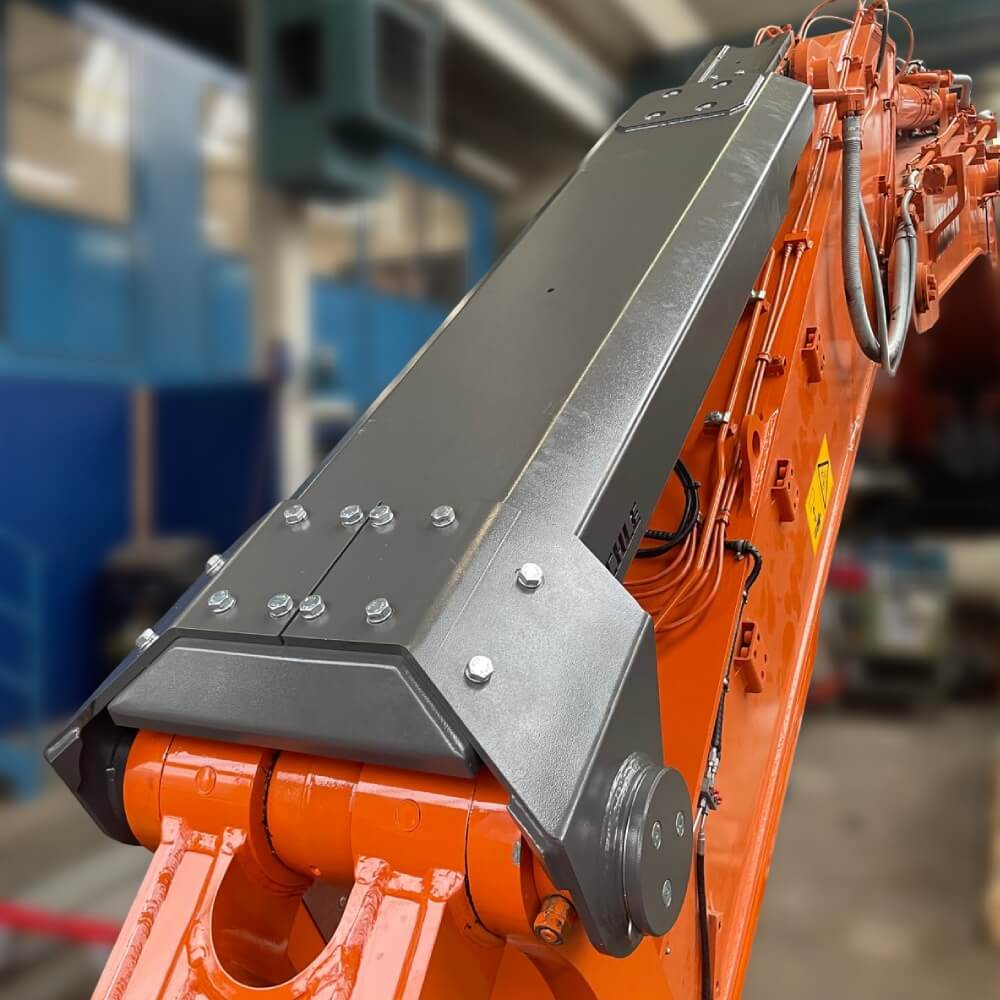

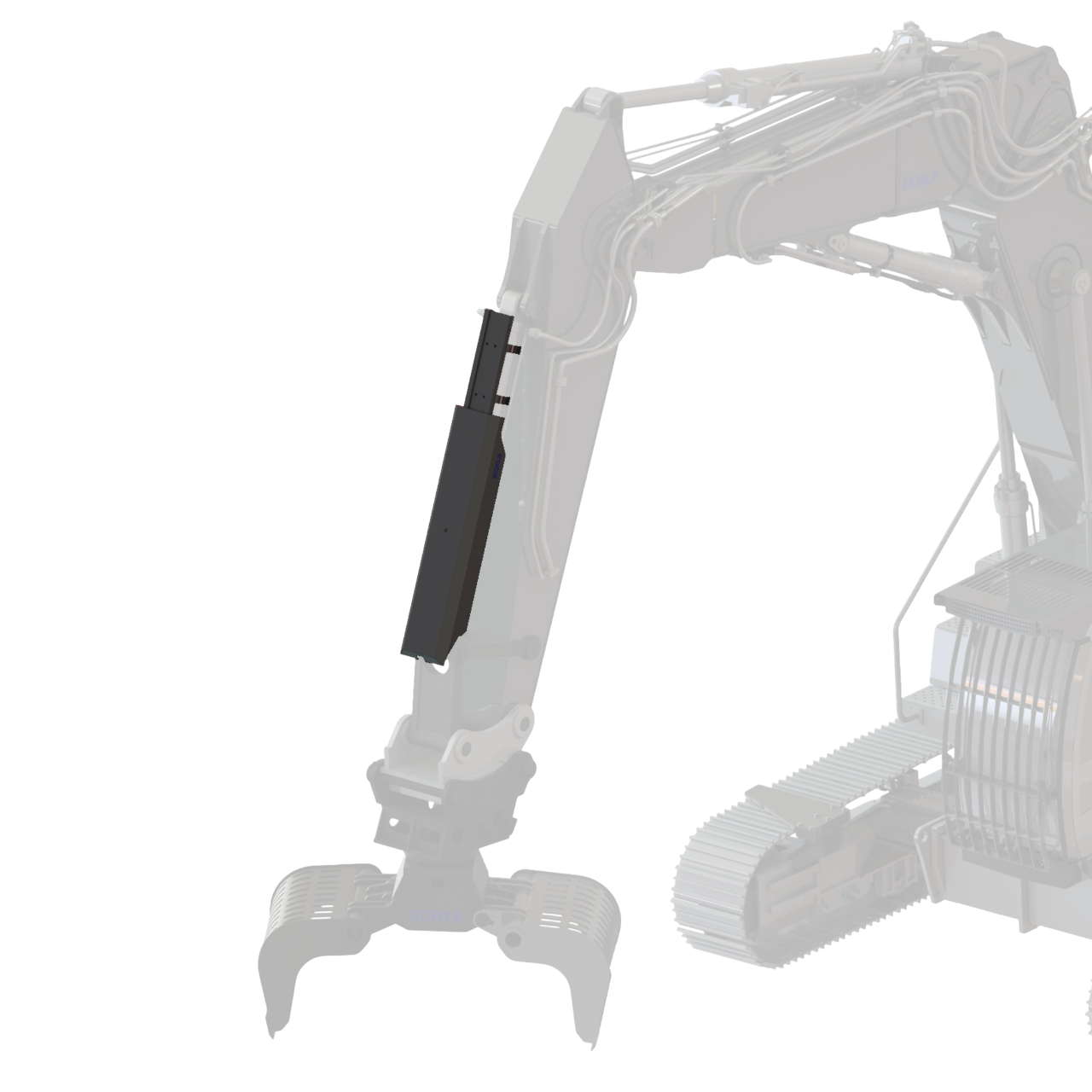

Cylinder guard for the bucket cylinder on excavators
- Complete kit for self-assembly including detailed assembly instructions and all mounting hardware.
- Version: With replacement bolts for bucket cylinder as self-assembly set, no welding work necessary.
Features
Color: Black, other colors available upon request
Note: We point out that the machine must either be delivered to 77709 Wolfach or the cylinder data must be independently submitted by you to Echle. The design and manufacturing are based on the dimensions provided. In addition, detailed photos of the cylinder and cylinder linkages are necessary, as the routing of hydraulic lines can vary from machine to machine. We do not assume any liability for the accuracy of fit in the event of incorrectly communicated dimensions. Subsequent adjustments will be charged according to the effort involved. Alternatively, on-site measurement by ECHLE can be offered.
For the machines listed below, we have already manufactured suitable cylinder guards. If your model is not listed, that's no problem: After ordering, you will receive a measurement sheet from us, based on which we can produce the guard individually for you.
Liebherr: R926 Compact and LH30
Kobelco: SK58SRX-7, SK85MSR-7, SK230SRLC-5, SK140SRLC-7, SK500LC-11, SK380SRLC, SK270SRLC-5, and SK300NLC-10E
Hitachi: ZX350-7, ZX300-7, ZX490-6, ZX530-7, ZX490-7, ZX690LCR-6, and ZX670LCR-5B
Case: CX145D, CX250D, CX300E, and CX245D
Sany: SY50U, SY215C, SY390H, SY155U, and SY265C
Komatsu: PC490-11, HB365NLC, and PC290-11
Hyundai: HX235LCR and HX480L
Doosan / Develon: DX225-7 and DX530-5
Volvo: ECR88D, ECR235E, EW180E, EC350E, EC700E, and ECR355E
Category: 390F, 325, 326, 309, 330, 374F, 329E, 349E, 340F, 336E, 336, and 330F
Kubota: KX080-4a2
