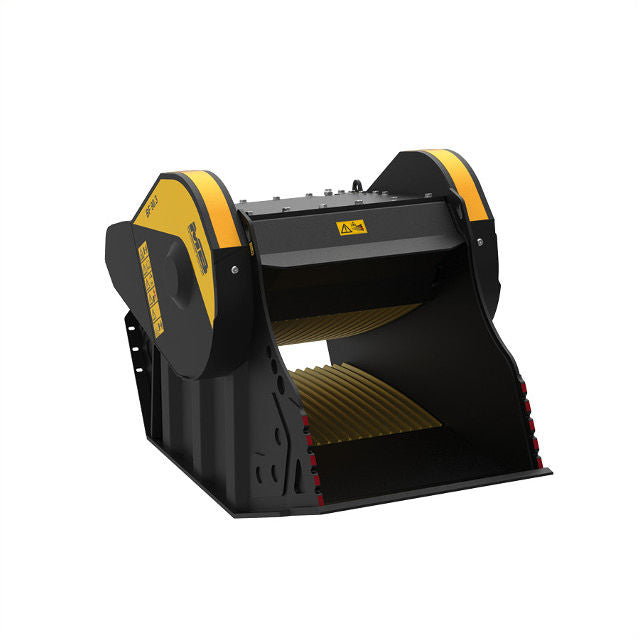

Jaw crusher bucket MB Crusher BF90.3 S4
Jaw crusher bucket MB Crusher BF90.3 S4
Official MB Crusher dealer
Competent contact person
Individual device configuration

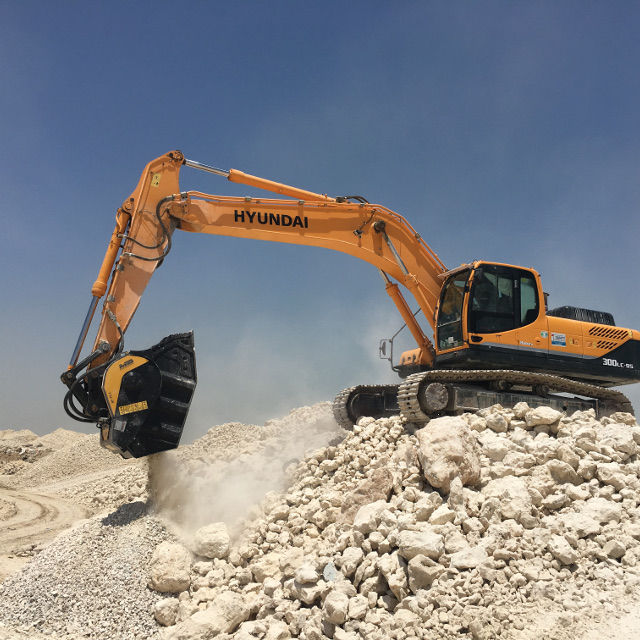

The MB Crusher BF90.3 S4 is a powerful jaw crusher bucket for excavators with an operating weight of 21–32 t. With a jaw opening of 910 mm, a capacity of 0.90 m³, and a throughput of up to 42 m³/h, it is ideal for on-site crushing of concrete, asphalt, construction rubble, and natural stone. Compact, robust, and versatile, it's perfect for demolition, recycling, and construction sites with limited space.
Technical data at a glance:
| Recommended excavator | 21 – 32 t |
| Weight | 3.5 t |
| Loading capacity | 0.9 m³ |
| Throughput | up to 42 m3/h |
| Grain size | 15 – 140 mm |
| Back pressure | 220 – 280 bar |
| Back pressure | < 10 bar |
| Oil flow * | 180 – 220 l/min |
| Opening width crusher | 910 mm |
| Opening height crusher | 540 mm |
| Dimension B | 2185 mm |
| Dimension A | 1340 mm |
| Dimension C | 1390 mm |
*The minimum hydraulic flow value must be achieved in conjunction with the required operating pressure.
Shreddable materials
Building materials
- Demolition material
- reinforced concrete
- asphalt
- brick
stones
- Money
- lime
- porphyry
- granite
- Marble
- basalt
- calcium carbonate
- Riverstone
Waste
- Glass
- Ceramics
Poles and pillars
- Concrete slabs
- Grid
- Vineyard poles
- Light poles
- Swell
Foundry waste and metals
- Casting mold waste and casting slag
- copper slag
Request your personal offer here:
