Jaw crusher bucket MB Crusher MB-L160 S2
Jaw crusher bucket MB Crusher MB-L160 S2
Delivery time: On request!
Couldn't load pickup availability
- Official MB Crusher dealer
- Competent contact person
- Individual device configuration

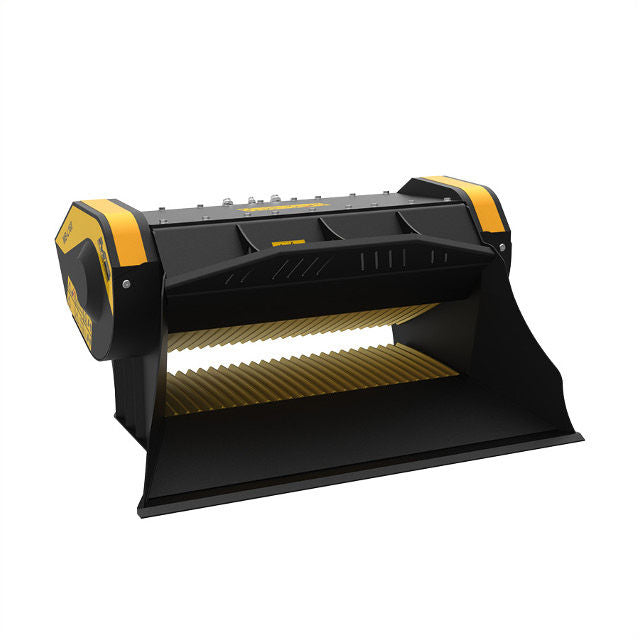

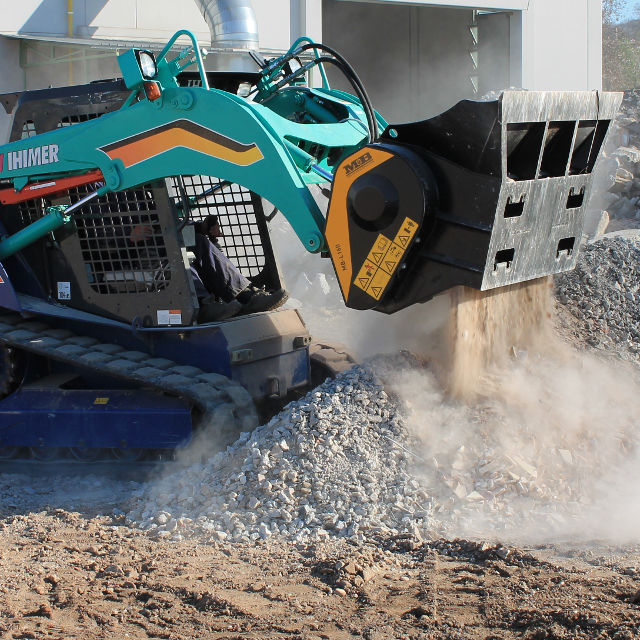

The MB-L160 S2 from MB Crusher is a powerful jaw crusher bucket for medium to large carrier machines. It is suitable for excavators from 11 to 16 tons, backhoe loaders from 7 tons, and larger skid steer loaders. With a loading volume of 0.35 m³ and a crusher opening of 1180 x 280 mm, it offers high material throughput directly on site. The bucket is ideal for applications in demolition, road construction, urban areas, and recycling, as it reduces transport costs and makes material directly recyclable.
Technical data at a glance:
| Recommended excavator | 11 – 16 tons |
| Recommended backhoe loader | 7 – 11 tons |
| Recommended skid steer loader* | 5 – 7 tons |
| Weight | 1.45 t |
| Loading capacity | 0.35 m³ |
| Throughput | up to 20 m3/h |
| Grain size | 15 – 60 mm |
| Back pressure | 200 – 280 bar |
| Back pressure | < 10 bar |
| Oil flow ** | 110 – 200 l/min |
| Opening width crusher | 1180 mm |
| Opening height crusher | 280 mm |
| Dimension B | 1300 mm |
| Dimension A | 1630 mm |
| Dimension C | 835 mm |
*See legal regulations for loading and tipping UNI ISO 14397 - 1:2008.
**The minimum hydraulic flow value must be achieved in conjunction with the required operating pressure.
Shreddable materials
Building materials
- Demolition material
- reinforced concrete
- asphalt
- brick
stones
- Money
- lime
- porphyry
- granite
- Marble
- basalt
- calcium carbonate
- Riverstone
Waste
- Glass
- Ceramics
Poles and pillars
- Concrete slabs
- Grid
- Vineyard poles
- Light poles
- Swell
Foundry waste and metals
- Casting mold waste and casting slag
- copper slag
