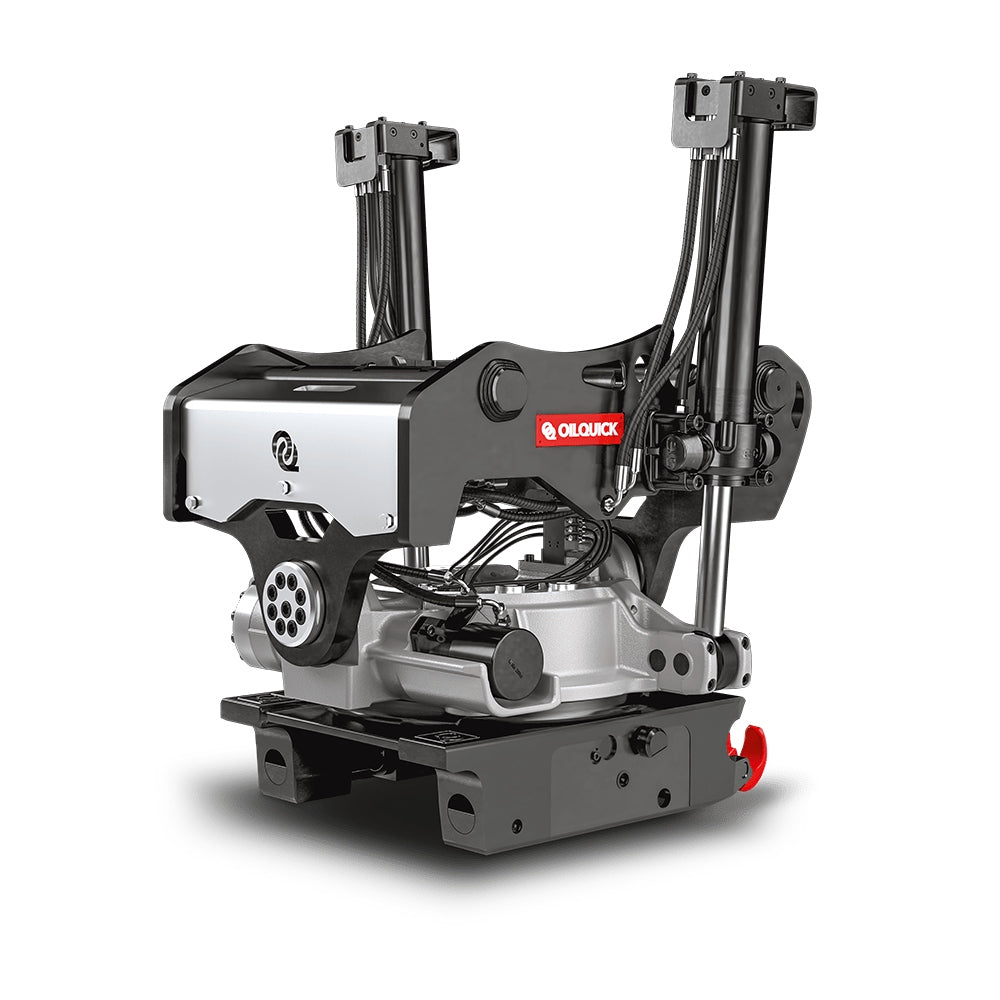

OilQuick Sandwich Tiltrotator OQTRS-E 09 Basic with OQ 45-5

Technical data
Max. bucket width: 1.3 m
Max. breaking torque: 74 kNm
Weight (kg): from 285 kg
Swivel angle: up to 2×45°
Swivel time for 90°: 3 seconds at 35 l/min
Rotation: endless
Rotation speed / revolution: 7 seconds at 40 l/min

Dimensions OQ45-4/-5
Dimension (A): 690 mm
Dimension (W): 510 mm
Dimension (C): 470 mm
Dimension (D): 550 mm
