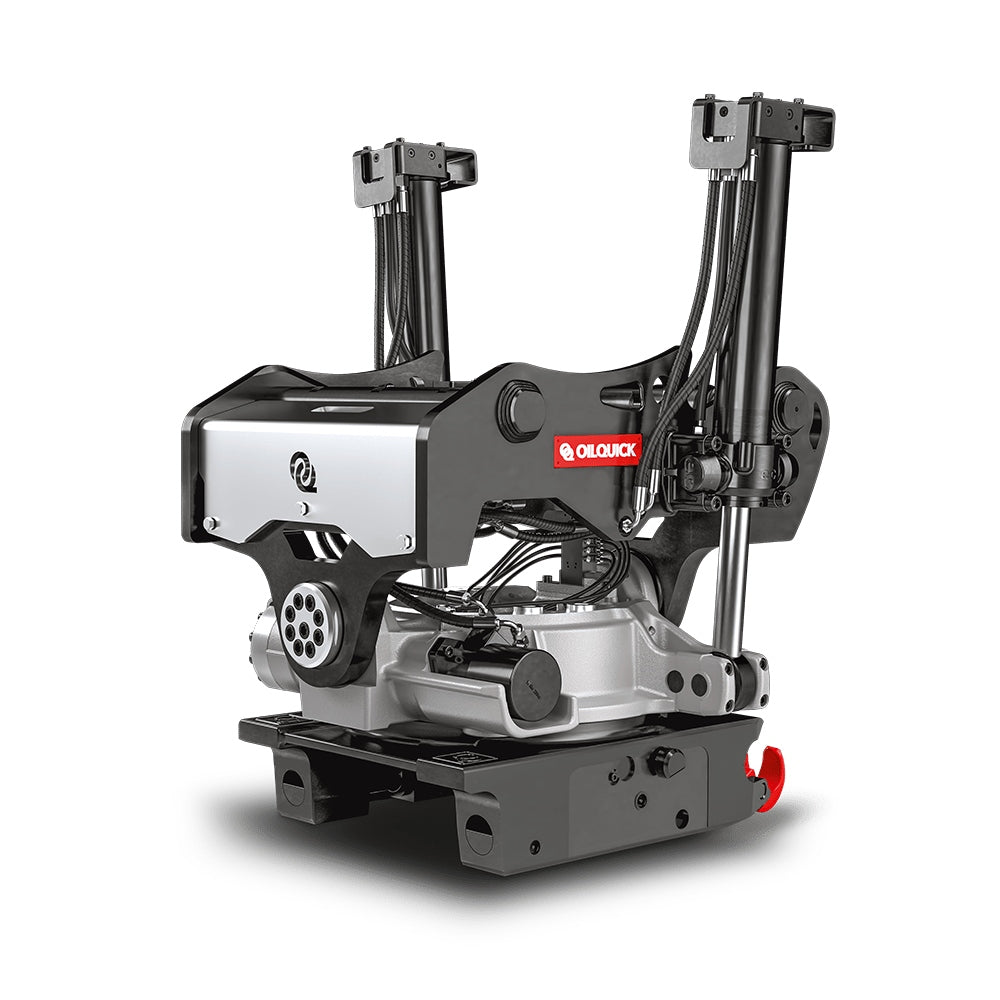

OilQuick Sandwich Tiltrotator OQTRS-E 26 Basic with OQ 70/55

Technical data
Max. bucket width: 2 m
Max. breaking torque: 270 kNm
Weight (kg): from 580 kg
Swivel angle: up to 2×45°
Swivel time for 90°: 5 seconds at 70 l/min
Rotation: endless
Rotation speed / revolution: 7 seconds at 70 l/min

Dimensions OQ70/55
Dimension (A): 890 mm
Dimensions (W): 780 mm
Dimension (C): 630 mm
Dimension (D): 870 mm
