Cross cutting head milling rock milling machine MB Crusher MB-R500
Cross cutting head milling rock milling machine MB Crusher MB-R500
Regular price
€8.491,00 EUR
Regular price
Sale price
€8.491,00 EUR
Taxes included.
Delivery time: On request!
Couldn't load pickup availability
- Official MB Crusher dealer
- Competent contact person
- Individual device configuration

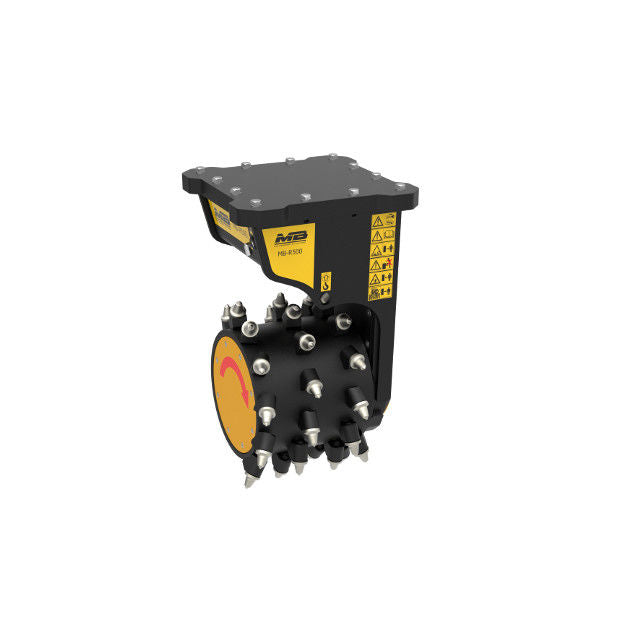

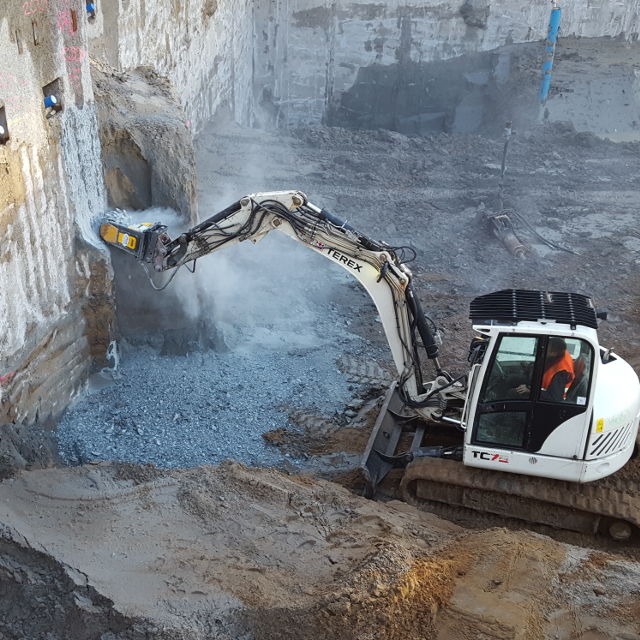

The new MB-R500 cross-cutting head milling machine is the most compact model in the MB Crusher milling machine range. Weighing just 300 kg, it's ideal for mini and midi excavators from 3.5 to 11 tons, as well as skid steer loaders from 3.5 tons upwards. Equipped with a powerful 500 mm diameter milling head, it enables precise work even in tight spaces.
Another advantage: The drum can be replaced directly on site in less than an hour – without having to visit a workshop.
Technical data at a glance:
| Recommended excavator | 3.5 – 11 t |
| Recommended skid steer loader* | 3.5 – 6 t |
| Weight | 0.30 t |
| Cutting width | 450 mm |
| Cutting force | 19600 N |
| Speed/min. | 80 – 120 rpm |
| torque | 5000 Nm |
| Back pressure | 300 – 350 bar |
| Backpressure | < 4 bar |
| Oil flow** | 60 – 120 l/min |
| Drum diameter | 500 mm |
| Dimension A | 500 mm |
| Dimension B | 500 mm |
| Dimension C | 820 mm |
*See legal requirements for loading and tipping UNI ISO 14397 - 1:2008.
**The minimum hydraulic flow value must be achieved in conjunction with the required operating pressure.
