Sorting gripper MB Crusher MB-G350 S4 | 1.3-2.6t
Sorting gripper MB Crusher MB-G350 S4 | 1.3-2.6t
Official MB Crusher dealer
Competent contact person
Individual device configuration

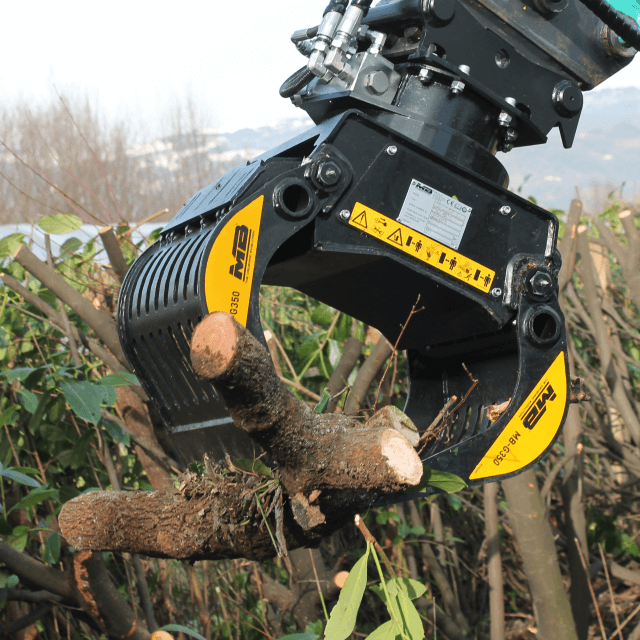

The MB-G350 S4 is MB Crusher 's smallest sorting grapple and is perfectly suited for mini excavators weighing 1.3 tons and above. Thanks to its compact design and hydraulic rotation, it is ideal for precise work on tight construction sites. Robust materials and a replaceable tooth set ensure durability and efficiency in daily use.
Technical data at a glance:
| Recommended excavator | 1.3 - 2.6 t |
| Weight | 0.09 t |
| rotation | 360° |
| Volume (closed shell) | 0.05 m³ |
| Required working pressure (rotation) | 130 - 170 bar |
| Oil flow (rotation) | 5 - 10 l/min |
| Required working pressure (open/close) | 180 - 220 bar |
| Oil flow (open/close) | 15 - 20 l/min |
| Dimension A | 795 mm |
| Dimension B | 570 mm |
| Dimension C | 233 mm |
| Dimension D | 615 mm |
| Dimension E | 490 mm |
| Dimension F | 285 mm |
| Dimension G | 350 mm |
Gripper with adapter plate of your choice
Upon request, we deliver your new demolition or sorting grapple directly with the appropriate mounting bracket.
What does that mean for you?
We handle the complete pre-assembly right here in-house. This includes:
- Professional installation of the suitable adapter plate: No matter which system you use – we install exactly the bracket you need (e.g., Lehnhoff, OilQuick, Martin, and many more).
- Complete hose connection of all ports.
When the attachment arrives, all you have to do is connect it, and you can start working immediately. No tinkering, no searching for suitable small parts – we at ECHLE / CM Parts ensure that your grapple is ready for use from the very first second.
Rely on our experience – we do it for you!
Request your personal offer here:
