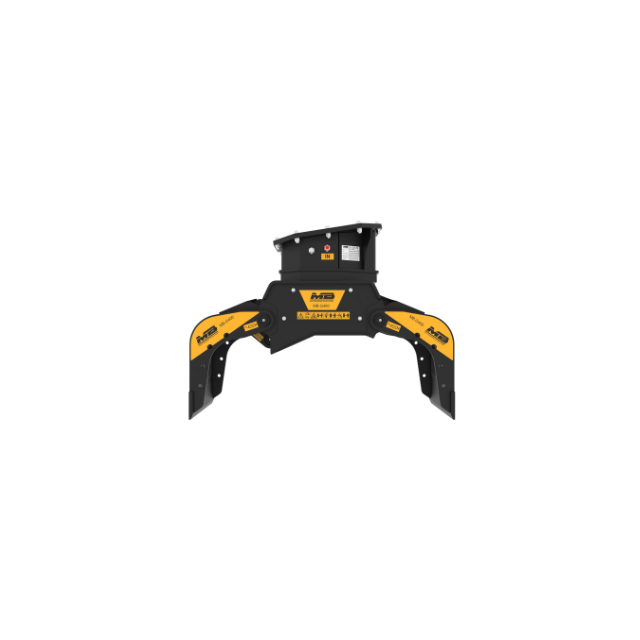

Sorting gripper MB Crusher MB-G400 S4 | 2.4-4 tons
Sorting gripper MB Crusher MB-G400 S4 | 2.4-4 tons
Official MB Crusher dealer
Competent contact person
Individual device configuration
The MB-G400 S4 is a powerful sorting grab for excavators from 2.4 to 4 tons. The device impresses with its easy handling, high torque, and modular structure for individual customization. Ideal for sorting, demolition, and loading work.
Technical data at a glance:
| Recommended excavator | 2.4 - 4 t |
| Weight | 0.2 t |
| rotation | 360° |
| Volume (closed shell) | 0.07 m³ |
| Required working pressure (rotation) | 130 - 170 bar |
| Oil flow (rotation) | 8 - 12 l/min |
| Required working pressure (open/close) | 180 - 220 bar |
| Oil flow (open/close) | 20 - 25 l/min |
| Dimension A | 1050 mm |
| Dimension B | 780 mm |
| Dimension C | 330 mm |
| Dimension D | 825 mm |
| Dimension E | 675 mm |
| Dimension F | 375 mm |
| Dimension G | 400 mm |
Gripper with adapter plate of your choice
Upon request, we deliver your new demolition or sorting grapple directly with the appropriate mounting bracket.
What does that mean for you?
We handle the complete pre-assembly right here in-house. This includes:
- Professional installation of the suitable adapter plate: No matter which system you use – we install exactly the bracket you need (e.g., Lehnhoff, OilQuick, Martin, and many more).
- Complete hose connection of all ports.
When the attachment arrives, all you have to do is connect it, and you can start working immediately. No tinkering, no searching for suitable small parts – we at ECHLE / CM Parts ensure that your grapple is ready for use from the very first second.
Rely on our experience – we do it for you!
Request your personal offer here:
