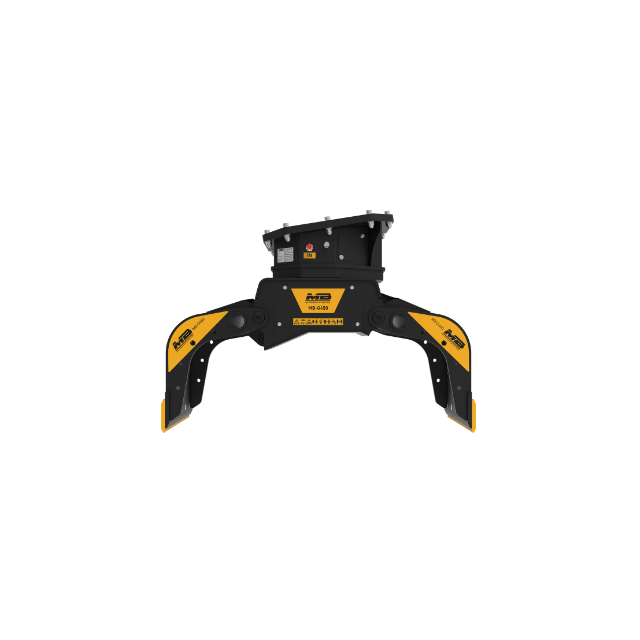

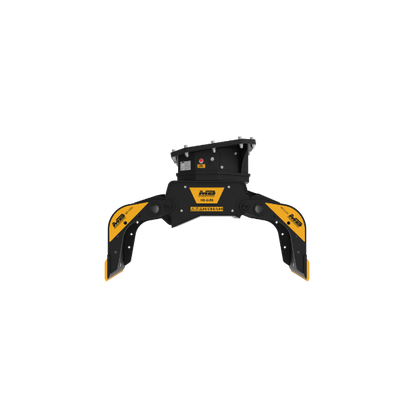

Sorting gripper MB Crusher MB-G450 S4 | 3.5-5.5 tons
Sorting gripper MB Crusher MB-G450 S4 | 3.5-5.5 tons
Official MB Crusher dealer
Competent contact person
Individual device configuration

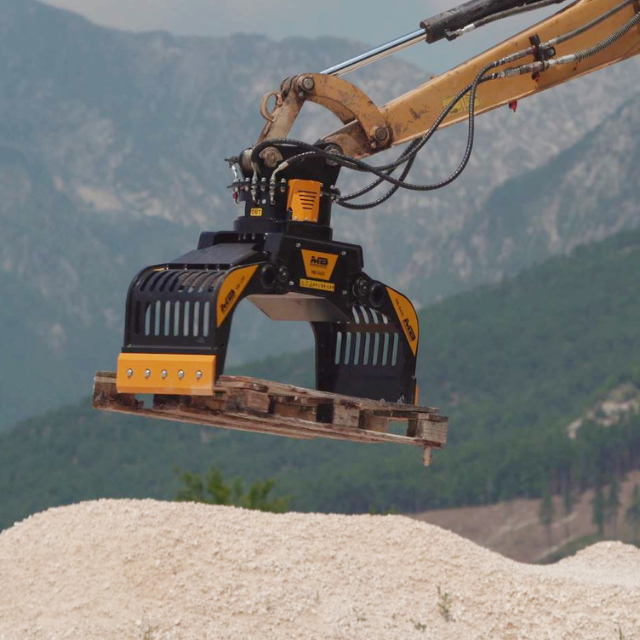

The MB-G450 S4 offers high gripping force with low weight—perfect for compact machines up to approximately 5.5 tons. The 360° rotation allows for precise positioning of the material. Ideal for landscaping, recycling, and light demolition work.
Technical data at a glance:
| Recommended excavator | 3.5 - 5.5 t |
| Weight | 0.31 t |
| rotation | 360° |
| Volume (closed shell) | 0.1 m³ |
| Required working pressure (rotation) | 150 - 200 bar |
| Oil flow (rotation) | 20 - 30 l/min |
| Required working pressure (open/close) | 180 - 250 bar |
| Oil flow (open/close) | 20 - 30 l/min |
| Dimension A | 1300 mm |
| Dimension B | 940 mm |
| Dimension C | 425 mm |
| Dimension D | 1030 mm |
| Dimension E | 770 mm |
| Dimension F | 520 mm |
| Dimension G | 475 mm |
Gripper with adapter plate of your choice
Upon request, we deliver your new demolition or sorting grapple directly with the appropriate mounting bracket.
What does that mean for you?
We handle the complete pre-assembly right here in-house. This includes:
- Professional installation of the suitable adapter plate: No matter which system you use – we install exactly the bracket you need (e.g., Lehnhoff, OilQuick, Martin, and many more).
- Complete hose connection of all ports.
When the attachment arrives, all you have to do is connect it, and you can start working immediately. No tinkering, no searching for suitable small parts – we at ECHLE / CM Parts ensure that your grapple is ready for use from the very first second.
Rely on our experience – we do it for you!
Request your personal offer here:
