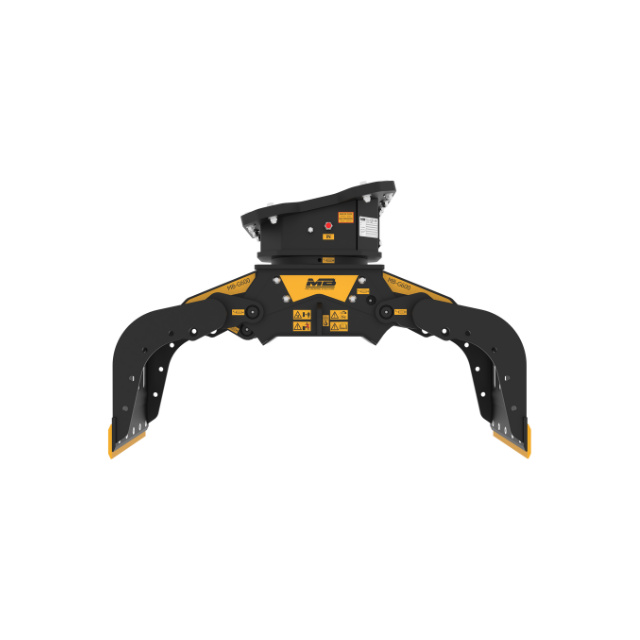

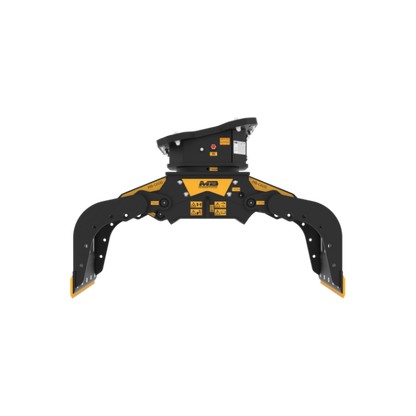

Sorting gripper MB Crusher MB-G600 S4 | 7-12 tons
Sorting gripper MB Crusher MB-G600 S4 | 7-12 tons
Official MB Crusher dealer
Competent contact person
Individual device configuration
With high gripping force and precise control, the MB-G600 S4 is suitable for excavators weighing 7 tons and above. The model is characterized by its durability, modular features, and excellent control for demanding applications.
Technical data at a glance:
| Recommended excavator | 7 - 12 tons |
| Weight | 0.63 t |
| rotation | 360° |
| Volume (closed shell) | 0.24 m³ |
| Required working pressure (rotation) | 160 - 220 bar |
| Oil flow (rotation) | 25 - 35 l/min |
| Required working pressure (open/close) | 250 - 300 bar |
| Oil flow (open/close) | 50 - 60 l/min |
| Dimension A | 1705 mm |
| Dimension B | 1145 mm |
| Dimension C | 470 mm |
| Dimension D | 1300 mm |
| Dimension E | 975 mm |
| Dimension F | 625 mm |
| Dimension G | 650 mm |
Gripper with adapter plate of your choice
Upon request, we deliver your new demolition or sorting grapple directly with the appropriate mounting bracket.
What does that mean for you?
We handle the complete pre-assembly right here in-house. This includes:
- Professional installation of the suitable adapter plate: No matter which system you use – we install exactly the bracket you need (e.g., Lehnhoff, OilQuick, Martin, and many more).
- Complete hose connection of all ports.
When the attachment arrives, all you have to do is connect it, and you can start working immediately. No tinkering, no searching for suitable small parts – we at ECHLE / CM Parts ensure that your grapple is ready for use from the very first second.
Rely on our experience – we do it for you!
Request your personal offer here:
