ECHLE

Cylinder protection excavator

€2.692,15 EUR

Sale Sold out

🚚 plus shipping costs

Delivery time: 6 - 7 weeks

Baggermodell / excavator

Your machine isn't listed?

No problem – we develop cylinder protection solutions tailored to your machine. Don't hesitate to contact us by phone, email, or via our contact form .

Telephone: +49 7834 86559-0
Email: info@cm-parts.com

We are available for you:
Mon - Fri: 8am - 4pm

Data sheet

Cylinder Protection German

Cylinder Protection English

Made in Germany
Precise manufacturing
Over 30 years of experience

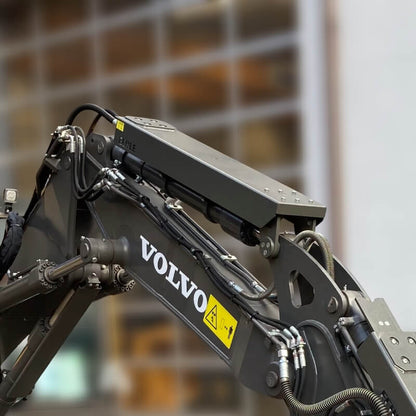

Cylinder protection for the bucket or stick cylinder on the excavator

Complete kit for self-assembly, including detailed assembly instructions and all mounting materials.
Variant: With replacement bolt for bucket or stick cylinder as a self-assembly set, no welding required.

Features

Color: Black, other colors available upon request

Note: Please be aware that the machine must either be delivered to 77709 Wolfach or the cylinder data must be independently submitted to Echle by you. The design and manufacturing are based on the provided dimensions. Additionally, detailed photos of the cylinder and the cylinder linkages are necessary, as the routing of hydraulic lines can vary from machine to machine. We do not assume any warranty for fitting accuracy in the event of incorrectly communicated dimensions. Subsequent adjustments will be charged according to the corresponding effort. Alternatively, on-site measurement by ECHLE can be offered.

For the machines listed below, we have already manufactured suitable cylinder guards. If your model is not listed, that's no problem: After ordering, you will receive a measurement sheet from us, based on which we can produce the guard individually for you.

Liebherr: R926 Compact and LH30

Kobelco: SK58SRX-7, SK85MSR-7, SK230SRLC-5, SK140SRLC-7, SK500LC-11, SK380SRLC, SK270SRLC-5, and SK300NLC-10E

Hitachi: ZX350-7, ZX300-7, ZX490-6, ZX530-7, ZX490-7, ZX690LCR-6, and ZX670LCR-5B

Case: CX145D, CX250D, CX300E, and CX245D

Sany: SY50U, SY215C, SY390H, SY155U, and SY265C

Komatsu: PC490-11, HB365NLC, and PC290-11

Hyundai: HX235LCR and HX480L

Doosan / Develon: DX225-7 and DX530-5

Volvo: ECR88D, ECR235E, EW180E, EC350E, EC700E, and ECR355E

Category: 390F, 325, 326, 309, 330, 374F, 329E, 349E, 340F, 336E, 336, and 330F

Kubota: KX080-4a2
